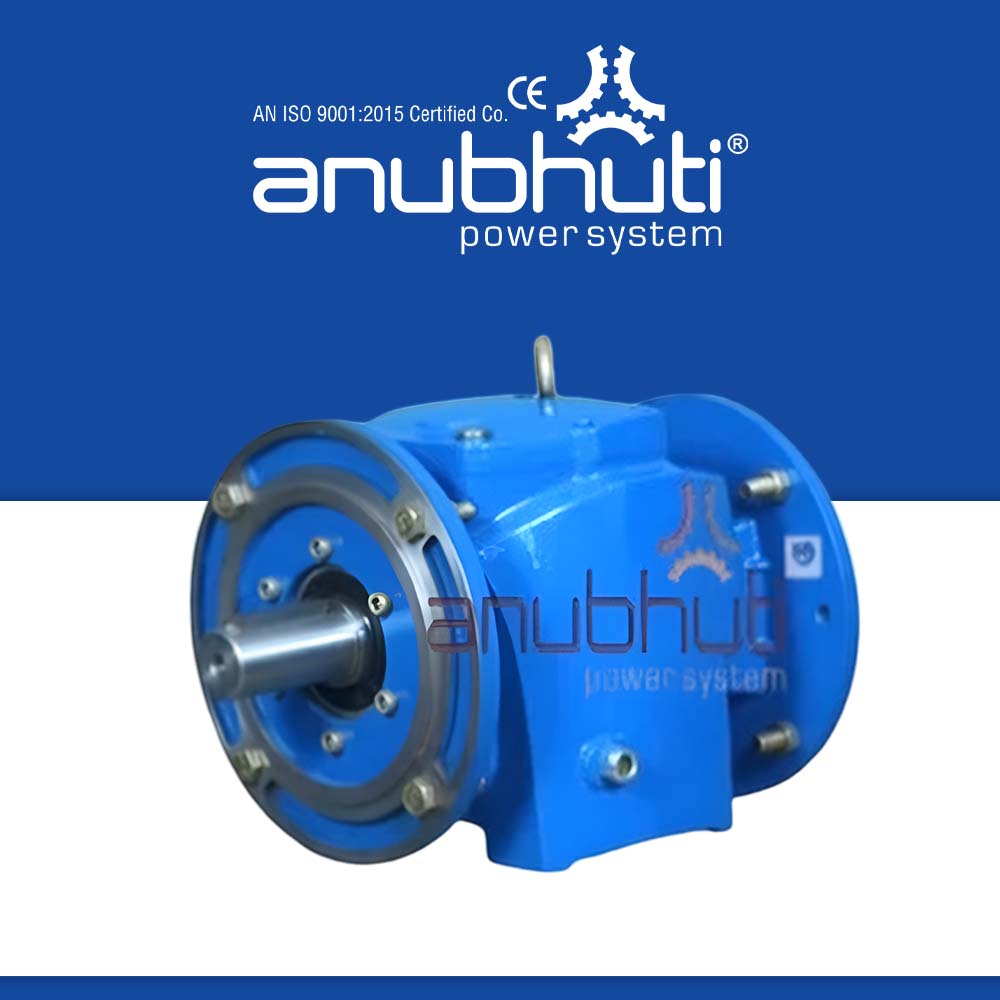

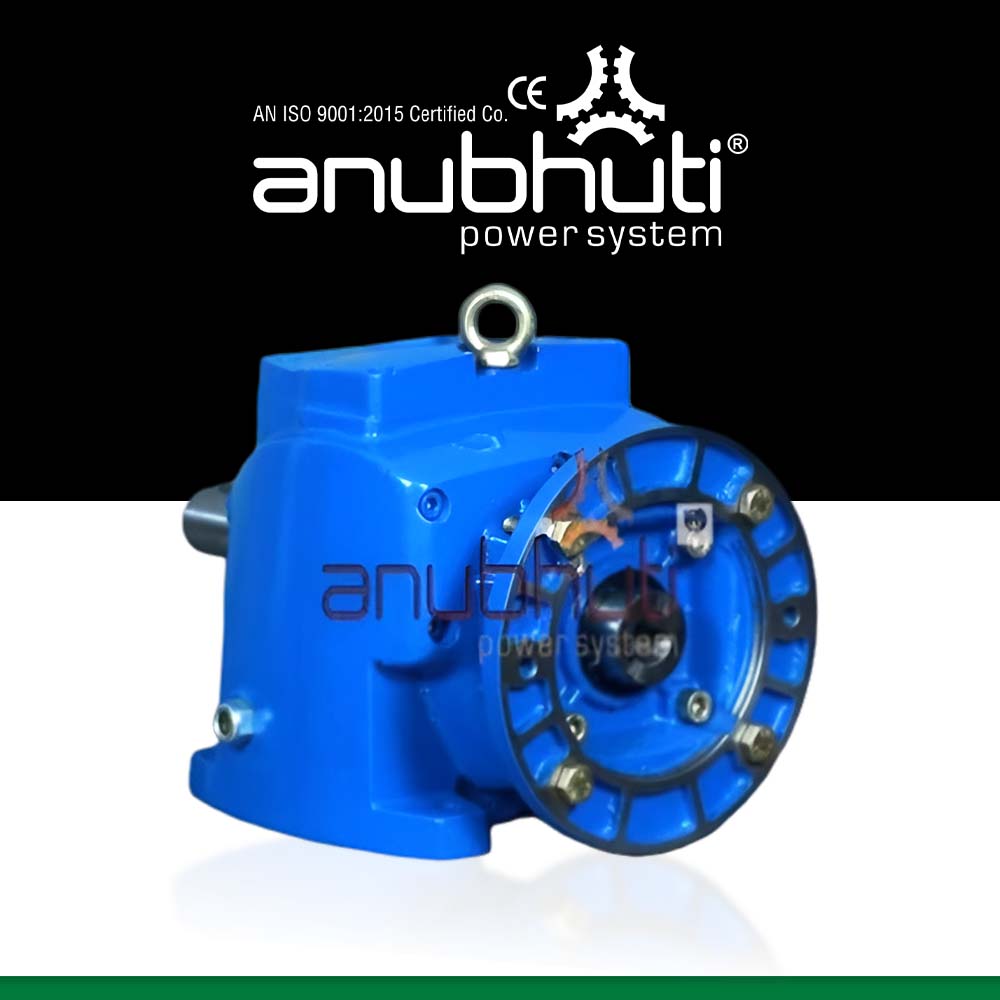

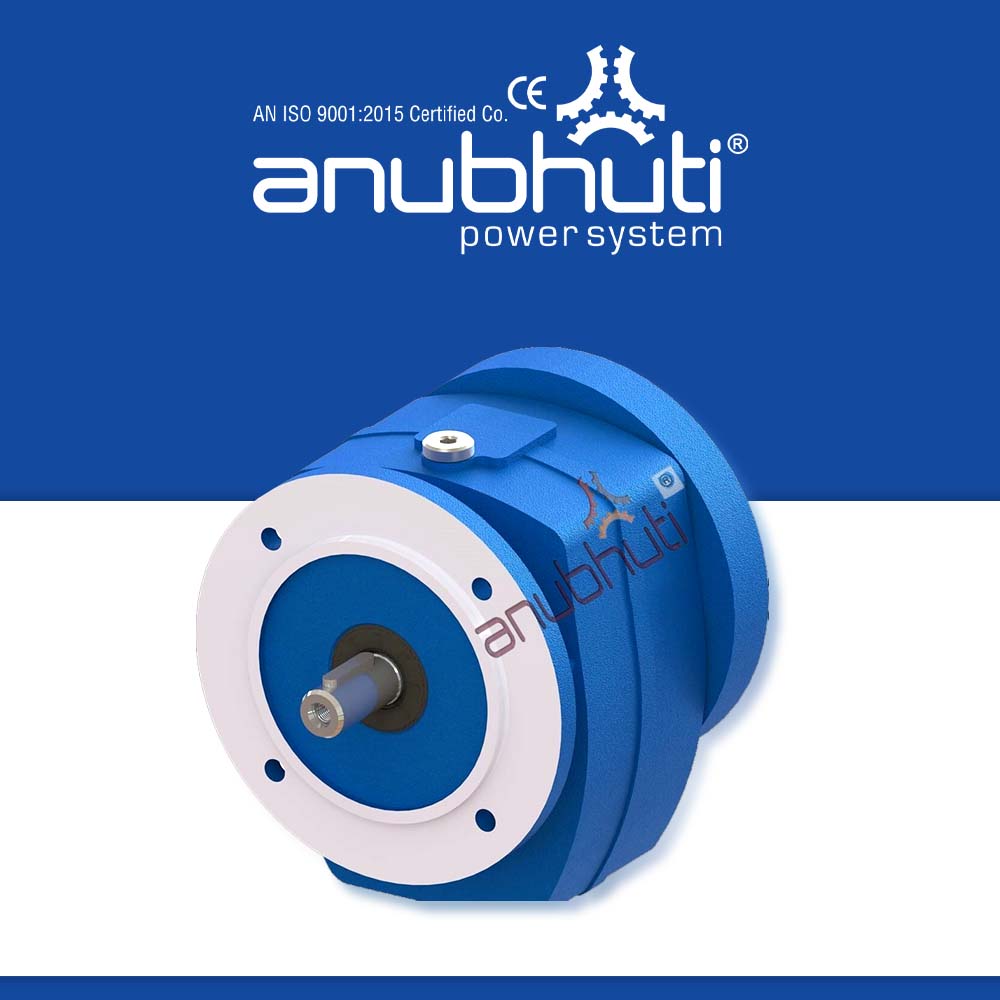

Helical Gear Box

Efficient Functioning With Advanced Helical Gear Box

The helical gear box, is a mechanical device designed to transmit rotational motion and power between shafts at different angles. It consists of a set of helical gears, which are cylindrical gears with teeth that are cut at an angle rather than parallel to the axis of rotation. This helical arrangement of teeth enables smoother and quieter operation compared to spur gears, as the teeth gradually engage and disengage, reducing noise and vibration. The gears are enclosed within a housing, typically made of cast iron or aluminum, which provides protection and lubrication to ensure efficient functioning. Moreover, Anubhuti Power System is among the most trusted Helical Gear Box manufacturers in India, offering products made from high-quality raw materials in compliance with international standards.
Contact Us Now

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

helical-gear-box-6

Top Tier Helical Gear Box Exporters in India

The primary purpose of this gearbox is to transfer power and torque between shafts while changing the speed and direction of rotation. It is commonly used in various industrial applications such as conveyor systems, machinery drives, automotive transmissions, and power generation equipment. The helical design of the gears allows for higher load-carrying capacity and greater efficiency compared to other gear types, making them suitable for heavy-duty and high-speed applications. Additionally, the compact size and versatility of helical gearboxes make them ideal for installations where space is limited or where precise control over speed and torque is required. Furthermore, our products are well-known for their long-lasting quality and reliability. So, contact us today to get one!
Explore More
Know More

Features of Helical Gear Box

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
  • Smoother and quieter operation
  • High efficiency
  • Greater load-bearing capacity
  • Compact design
  • Precise and reliable power transmission
Call Any Time
(+91) 98256 76758
With Latest Technology

Applications of Helical Gear Box

1
Industrial machinery
2
Automotive transmissions
3
Marine propulsion systems
4
Heavy equipment
5
Printing presses
6
Plastic Machinery
7
Ceramic Industries
Detail

Technical Details

01
GEAR BODY
It is made of close grain cast iron, which is absolutely dust proof & oil tight.
02
GEARS
Gears are helical type-made of cast iron, hardened alloy steel, Gear teeth are hobbed and profile ground for smooth & silent running.
03
OIL SEAL
Silicon oil seals are used to resist very high temperature resulting from the heaters on the barrel.
04
BEARING
Taper roller bearings of ample capacity are used to withstand thrust and radial loads.
05
LUBRICATION
Lubrication is done by splash of oil, no separate care is required except periodic checking of oil level – Use proper grade of gear oil only. – Change first filling of oil after two months of operation and them after every six months.
Details

Product Details

Material
Mild Steel
Brand
Anubhuti
Type
Helical
Orientation
Horizontal and Vertical
Power (HP)
0.5 TO 20 HP
Power Source
Electric
IP Rating
IP 55
Protection
Voltage (Volt)
