NMRV Gear Box

NMRV Gear Box For Precision Control Are Speed

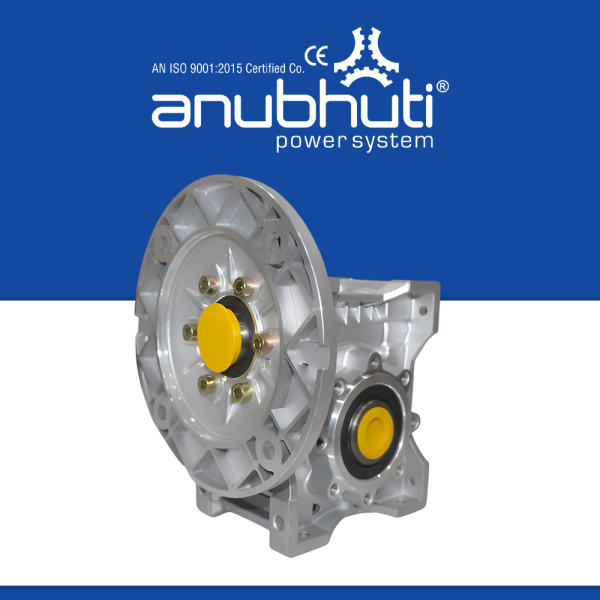

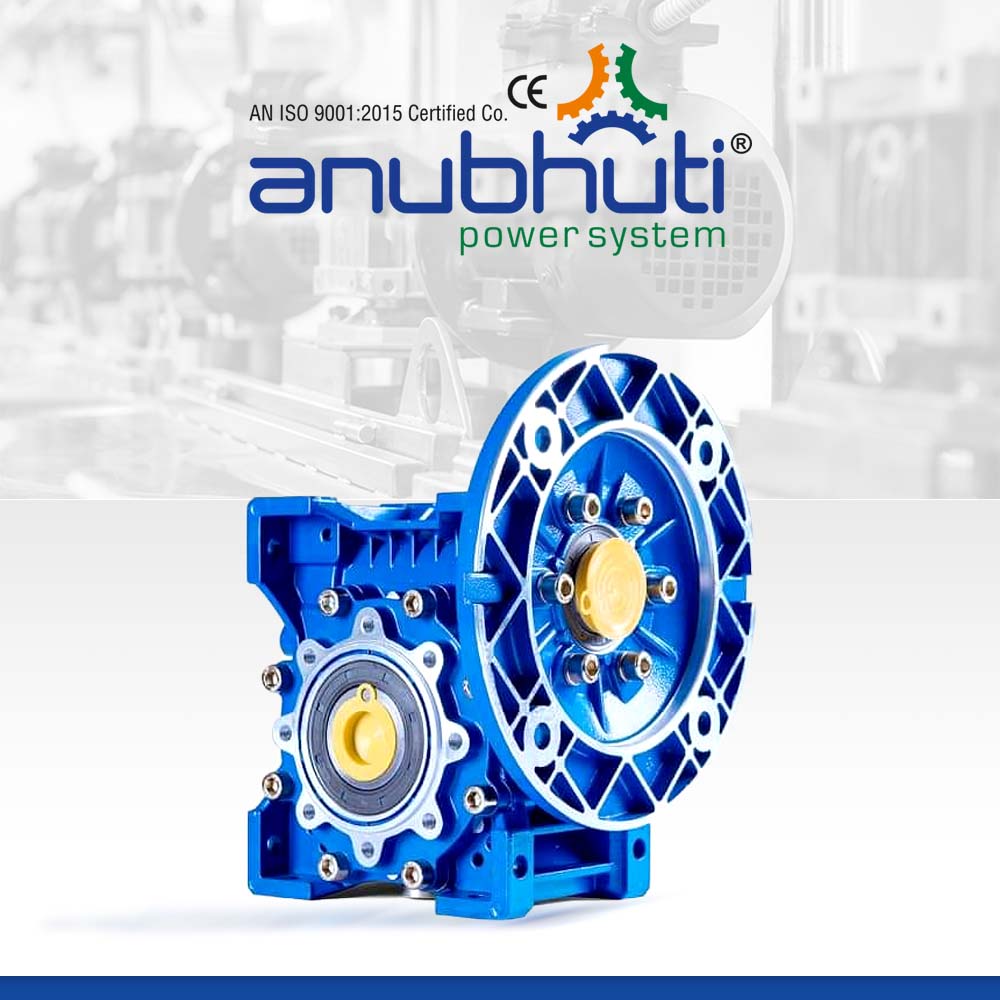

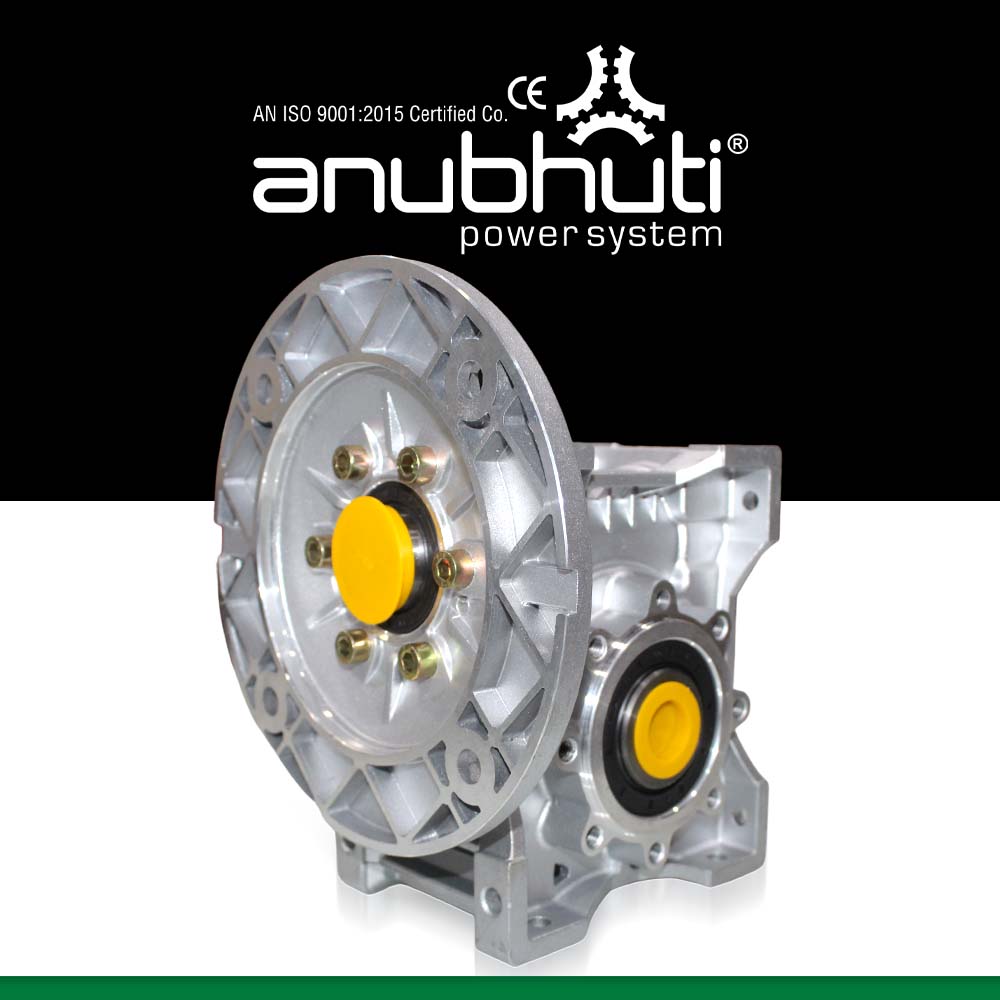

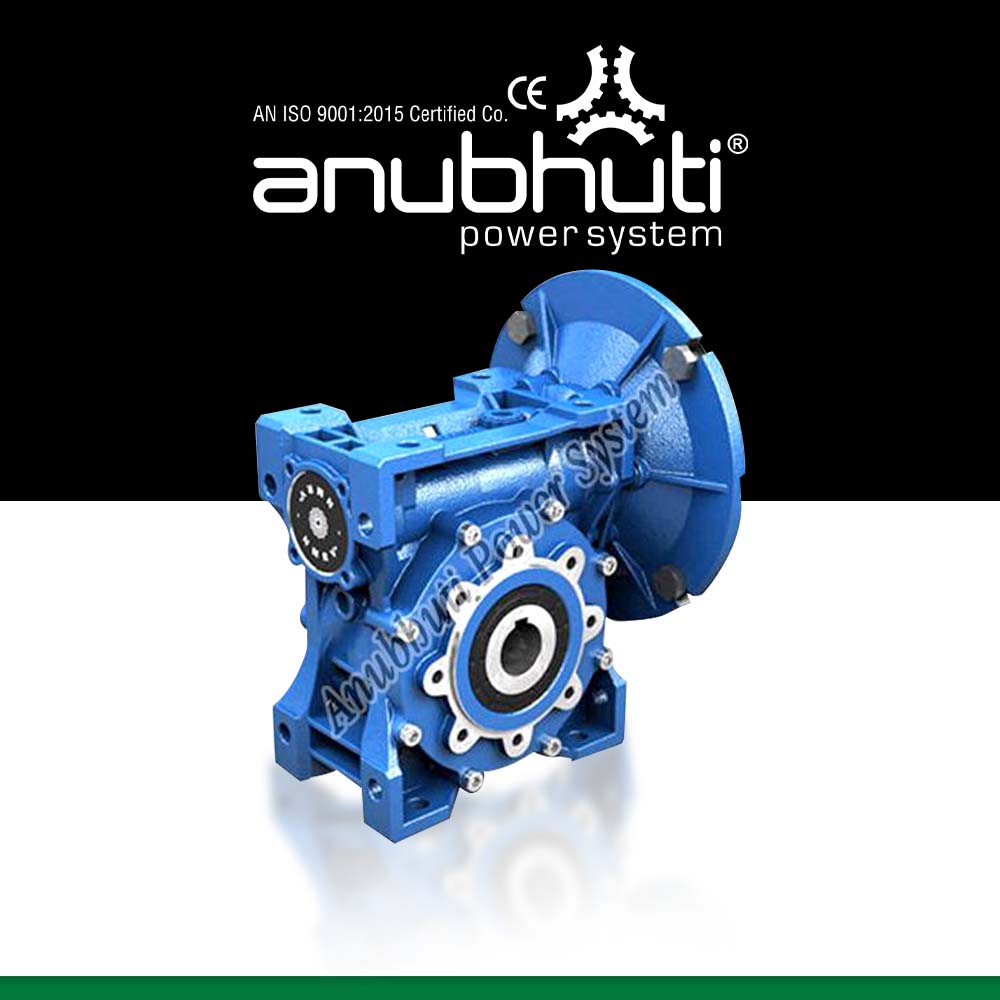

The NMRV gear box, also known as a worm gear reducer, is a mechanical device used for transmitting power and reducing speed between a motor and a driven piece of machinery. Our gearbox is characterized by its compact design, high efficiency, and smooth operation. This gearbox consists of a worm screw that meshes with a worm gear, resulting in a right-angled output that allows for versatile installation configurations. These gearboxes are commonly used in industrial applications where precise control over speed and torque is essential, such as conveyor systems, packaging machinery, and automation equipment. Anubhuti Power System is among the leading NMRV gear box manufacturers in India offering superior quality products at reasonable costs.

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

India’s Most Prominent NMRV Gear Box Suppliers

The NMRV gearbox provides speed reduction while maintaining high torque output, making it an ideal solution for applications requiring heavy-duty performance. By utilizing a worm gear design, these gearboxes offer excellent load-holding capabilities, preventing back-driving and providing stable operation even under heavy loads. Additionally, the compact size of our gearbox allows for easy integration into existing systems with limited space constraints. It has various ratios available, so, users can select the appropriate gearbox to achieve the desired speed reduction for their specific application. Additionally, we guarantee the timely delivery of these products to our customers, which has helped us establish ourselves as one of the top NMRV gear box suppliers in India.
Know More

Features of NMRV Gearbox

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
Call Any Time
With Latest Technology

Applications of NMRV Gearbox

Conveyor systems
Packaging machinery
Food processing equipment
Industrial automation
Material handling equipment
Printing presses
Agricultural machinery

Technical Details

Input power
0.25 HP to 7.5 HP
Speed Ratio
7.5, to 100
Standard Model
NMRV box type 30, 40, 50, 63, 75, 90,110, 130 with Suitable AC motors

Product Details

63-160 L
0.18 -15 Kw
0.25-20 Hp
2900, 1500, 1000, 750 rpm
I Class
B. & F.
S1, S2, S3, S4
IP 44, IP 55, IP 54
