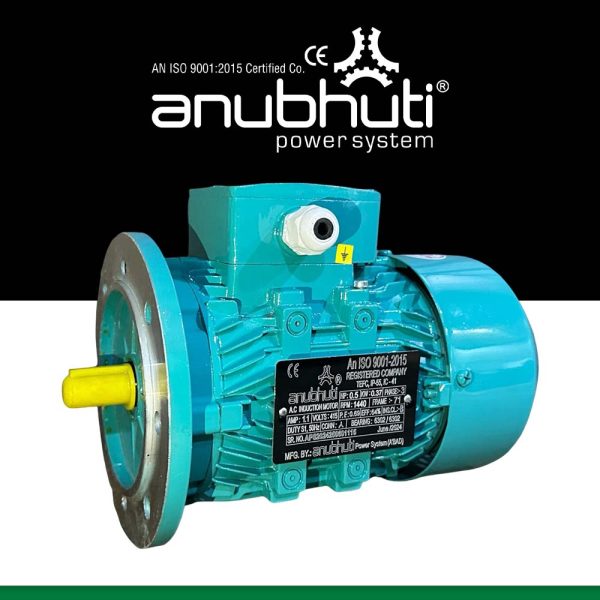

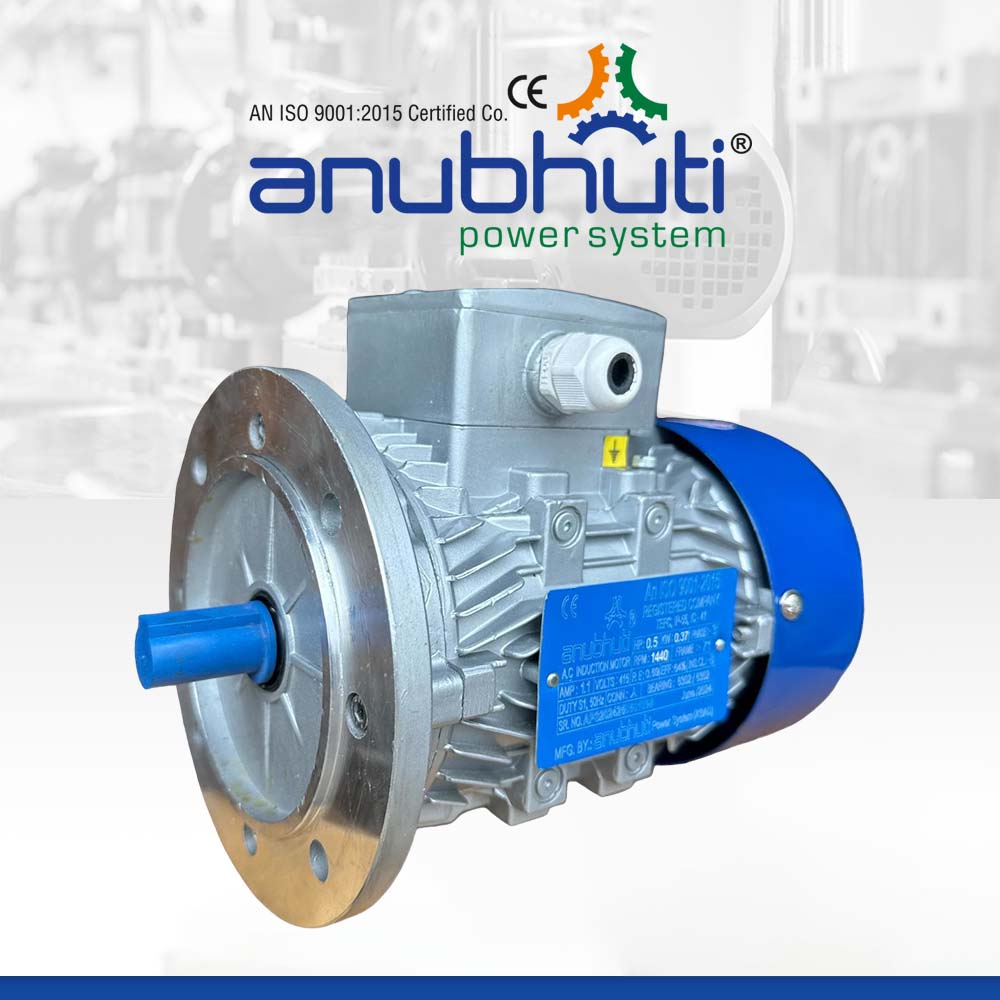

3 Phase AC Motor

Offering Premium Quality 3 Phase AC Motor

The 3 Phase AC Motor is a highly efficient and reliable machine that is extensively used in various industrial applications. It operates on a three-phase alternating current (AC), which is the most common form of electrical power supply in industrial settings. The motor is designed to convert electrical energy into mechanical energy through the interaction of magnetic fields. This type of motor is renowned for its high power output, superior efficiency, and the ability to operate continuously under demanding conditions, making it an ideal choice for heavy-duty machinery and equipment. Moreover, Anubhuti Power System is among the well-known 3 phase AC motor manufacturers in India, providing the best and efficient motors for various needs.
Contact Us Now

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

Three-phase-motor-2

Get 3 Phase AC Motor from Leading Exporters

The offered motor works by creating a rotating magnetic field through the three-phase AC power. This magnetic field then interacts with the windings in the motor, generating a force that causes the motor's shaft to rotate. Additionally, this motor can start under load without the need for a separate starting circuit. Moreover, it provides a smoother and more stable power output compared to single-phase motors, resulting in less vibration and noise, and thereby extending the motor's lifespan. Furthermore, the motor offered by the leading 3 phase AC motor exporters in India is a powerful and durable solution for a wide range of industrial applications.
Explore More
Know More

Features of 3-Phase AC Motor

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
  • High efficiency
  • Self-starting capability
  • High power output
  • Smooth and stable power output
  • Less vibration and noise
Call Any Time
(+91) 98256 76758
With Latest Technology

Applications of 3-Phase AC Motor

1
HVAC systems
2
Air Blower
3
Manufacturing Equipments
4
All types of machineries
5
Conveyor belts
6
Compressors
7
Dairy Products Machinery
Detail

Technical Details

01
Range
0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
02
Mounting
Foot – Flange – Face
03
Frame
Motor are supplied in a robust, rugged cast iron & aluminum frame with integral feet
04
Ratings
All Standard Three-phase Motors are continuous rated to comply with performance standards.
05
Voltage and Frequency
Supply volts 415 +- 5% 3 phase 50 Hz. +- 3%
06
Enclosures
Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55.
Details

Product Details

Power
10-100 Kw
Mounting Type
Face,Foot,Flange
Number Of Poles
2, 4, 6, 8
Speed
750-3000 RPM
Ambient Temperature
55 deg c
