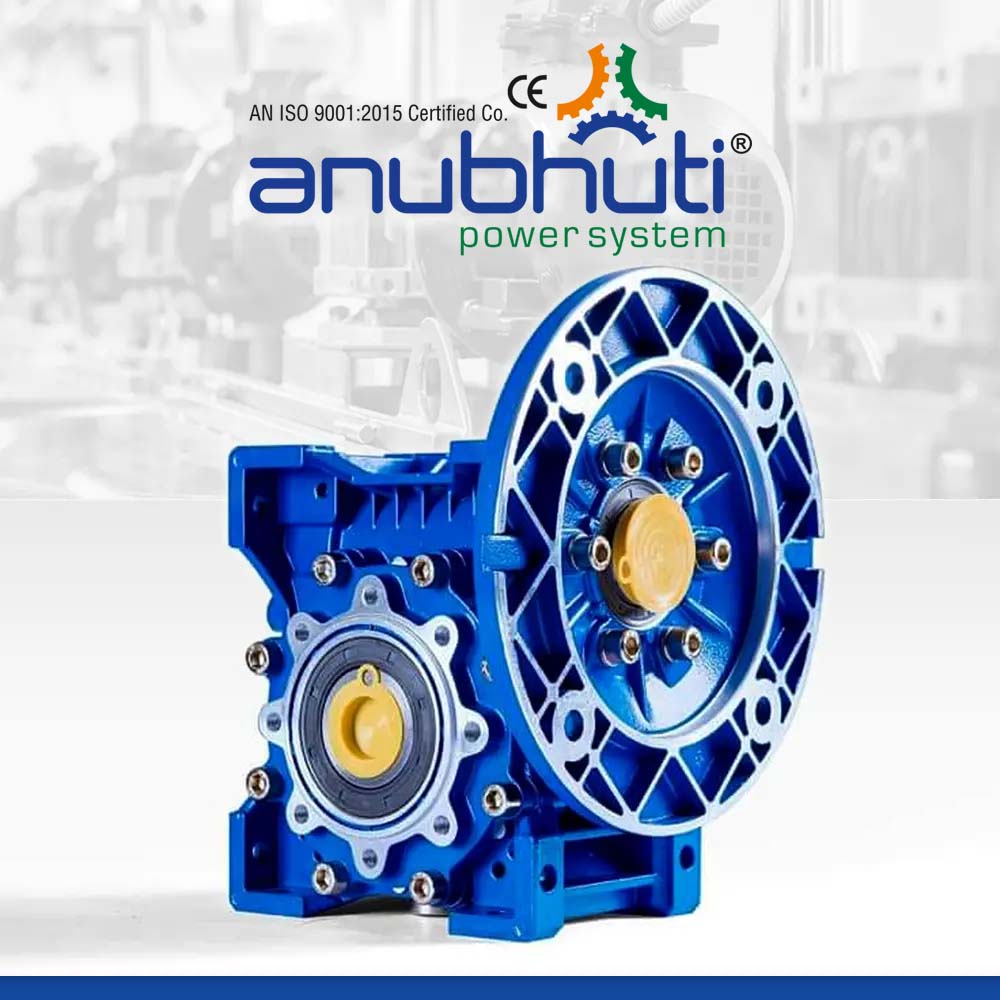

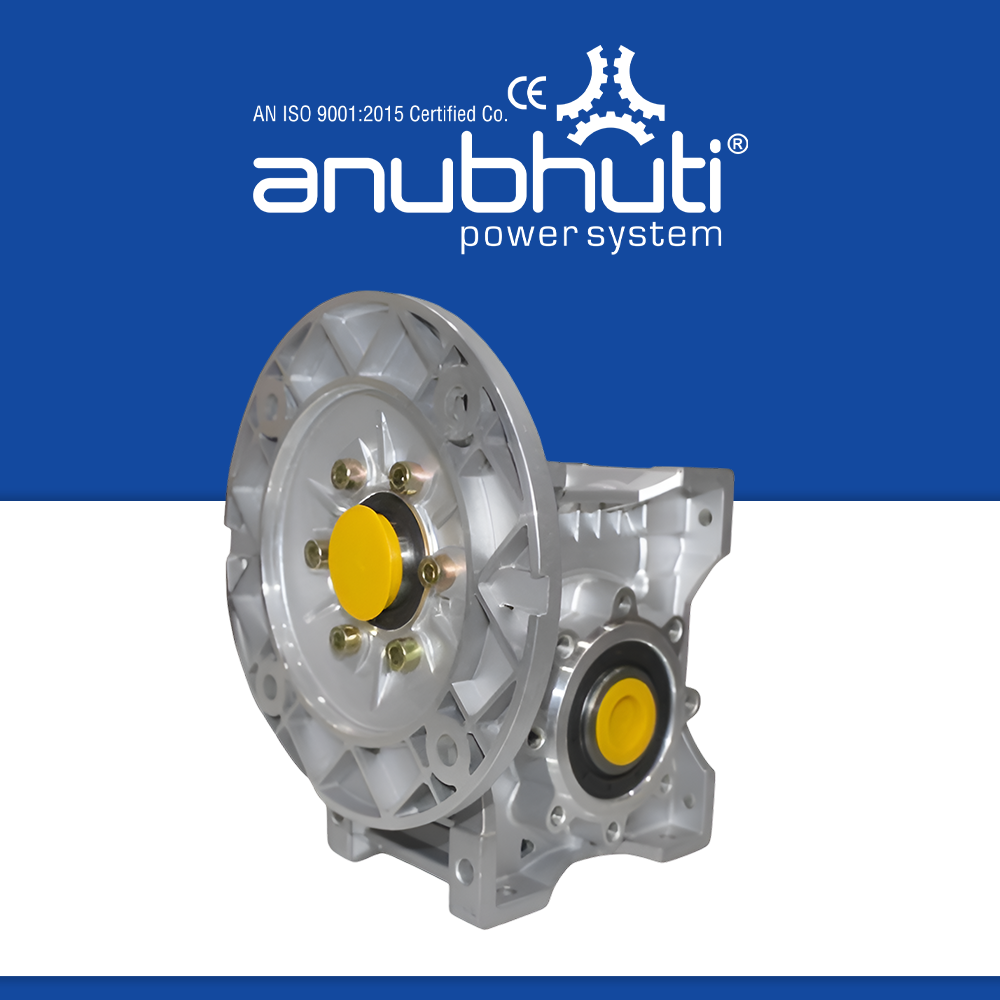

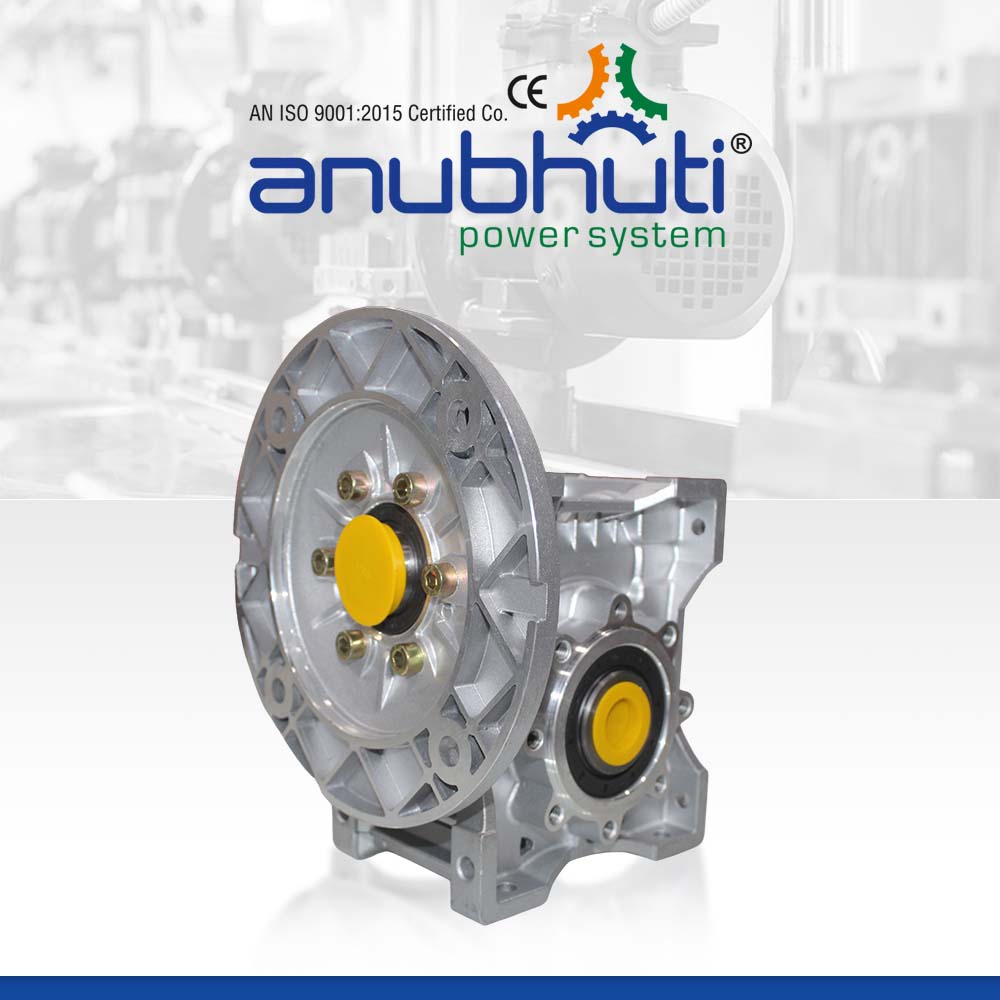

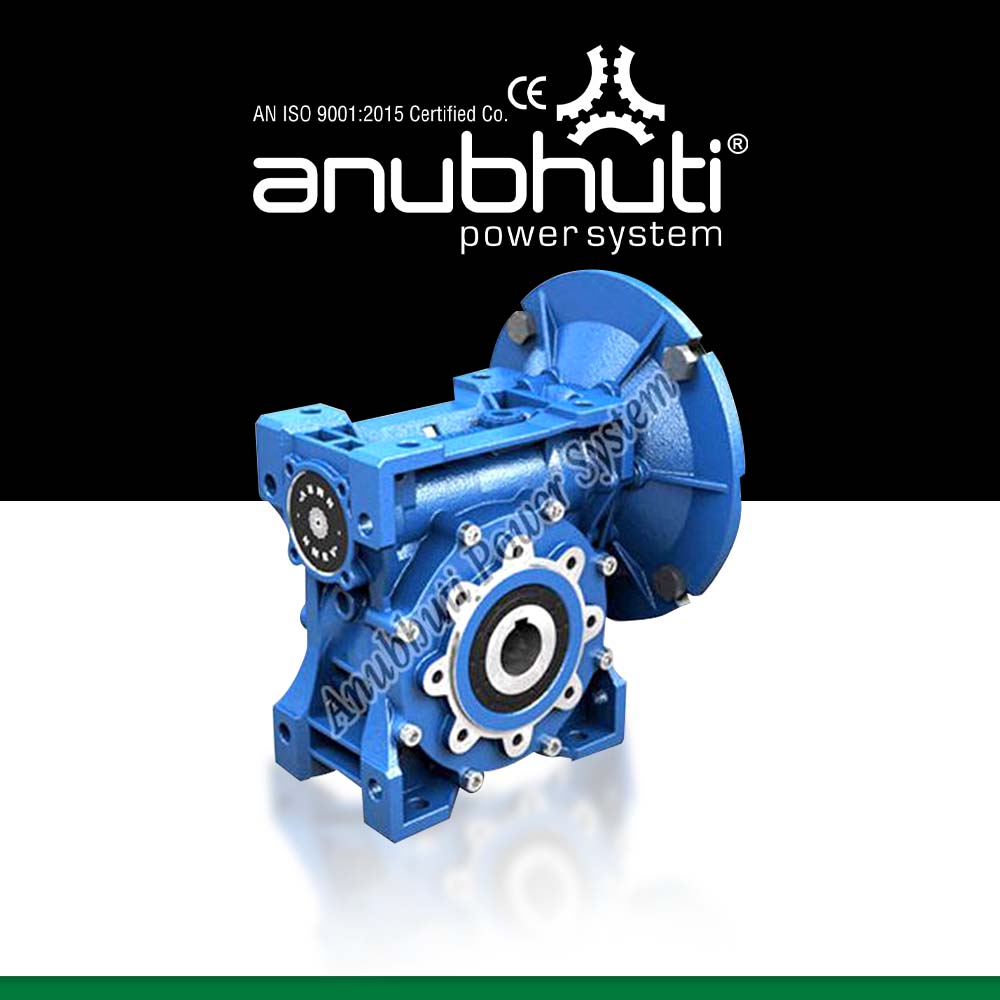

Aluminum Worm Reduction Gearbox

Aluminum Worm Reduction Gearbox at Reasonable Cost

Anubhuti Power System has designed the aluminum worm reduction gearbox to efficiently transmit power while reducing rotational speed between a motor and an output shaft. Its design incorporates a worm gear, typically made of hardened steel, meshing with a worm wheel or worm gear made of aluminum. This configuration enables the gearbox to achieve high gear ratios, making it suitable for various applications. The aluminum construction of the worm wheel offers several advantages, including lightweight, corrosion resistance, and excellent thermal conductivity. Additionally, being one of the trusted Aluminum Worm Reduction Gearbox manufacturers in India, we supply a diverse range of gearboxes in a variety of specifications at industry-leading costs.

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

The Best Aluminum Worm Reduction Gearbox Suppliers in India

This gearbox provides precise control over the speed and torque output of a motor-driven system. By employing a combination of the worm and worm wheel mechanism, it can achieve gear ratios ranging from 5:1 to over 100:1, depending on the specific application requirements. This versatility makes this gearbox well-suited for use in conveyors, packaging equipment, material handling systems, and other machinery where precise speed reduction is critical. Furthermore, the use of aluminum in the construction of the worm wheel enhances the gearbox's efficiency by reducing inertia and minimizing power losses. Our gearbox offers a reliable and efficient solution for achieving precise speed control and torque transmission in a wide range of industrial applications. So, hurry and buy this product today!
Know More

Features of Aluminum Worm Reduction Gearbox

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
Call Any Time
With Latest Technology

Applications of Aluminum Worm Reduction Gearbox

1
Industrial machinery
2
Conveyor systems
3
Material Handling
4
Packaging machinery
5
Automotive assembly lines
6
Food processing machinery
7
Agricultural machinery
Detail

Technical Details

Mounting
Foot – Flange – Face
02
Power
10-100 Kw
03
Speed
2000-6000 RPM
01
Range
0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
07
Enclosures
Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55.
Standards
Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
04
Frame
Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
05
Ratings
All Standard Three-phase Motors are continuous rated to comply with performance standards.
06
Voltage & Frequency
Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Details

Product Details

Frame
63-160 L
K.W.
0.18 -15 Kw
H.P.
0.25-20 Hp
2900, 1500, 1000, 750 rpm
I Class
B. & F.
Duty
S1, S2, S3, S4
Enclosure
TEFC, TESC
Protection
IP 44, IP 55, IP 54
