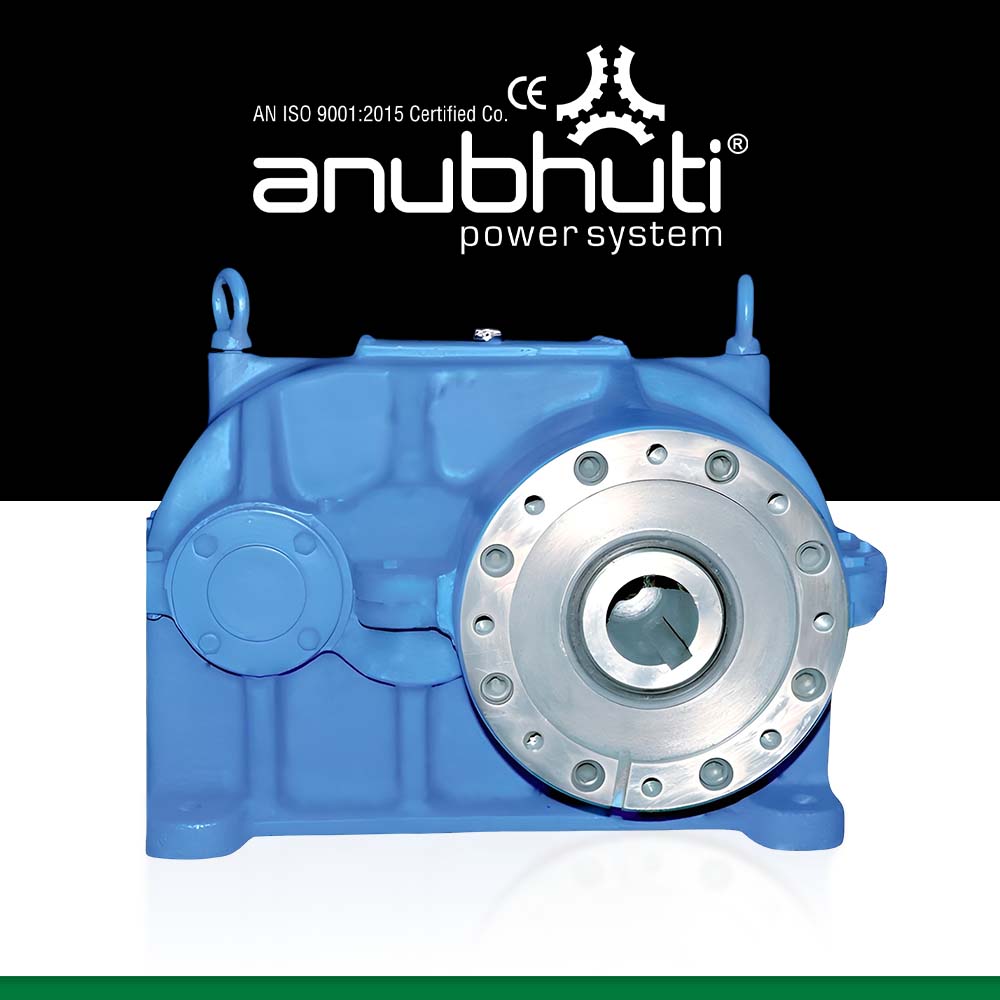

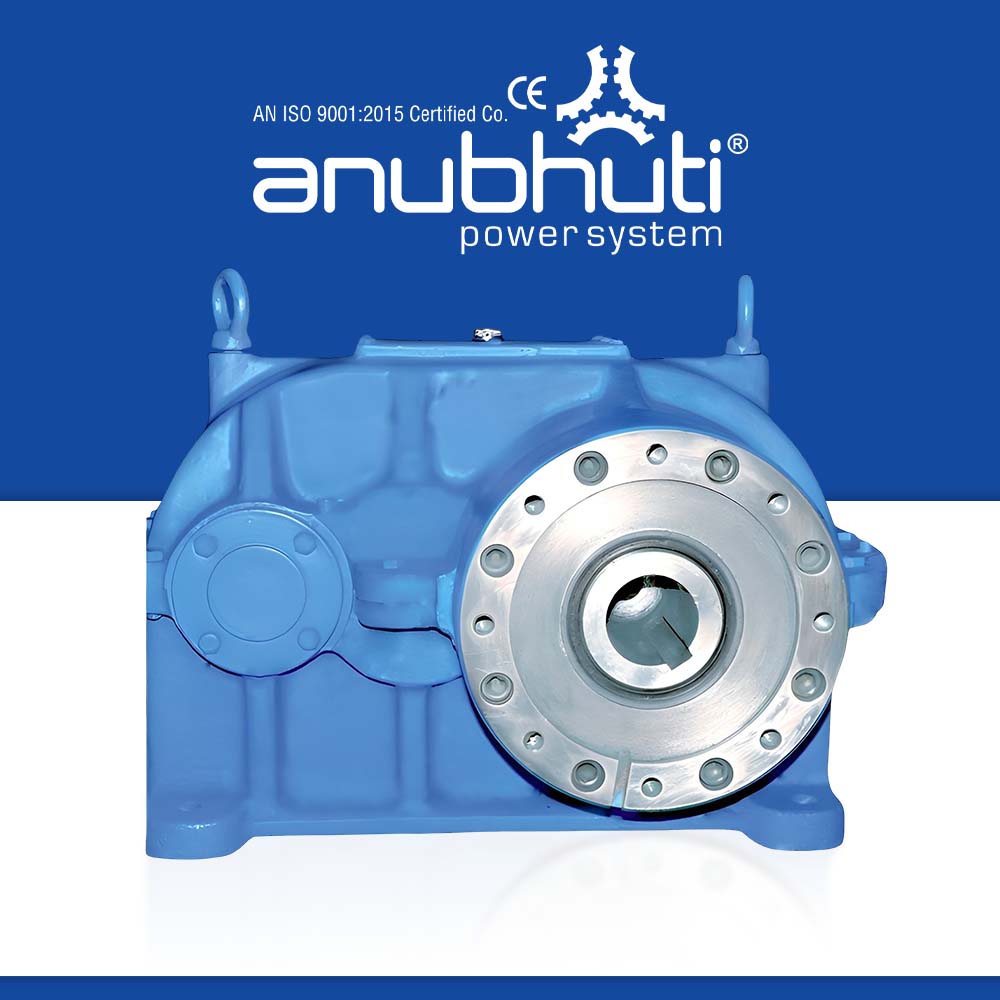

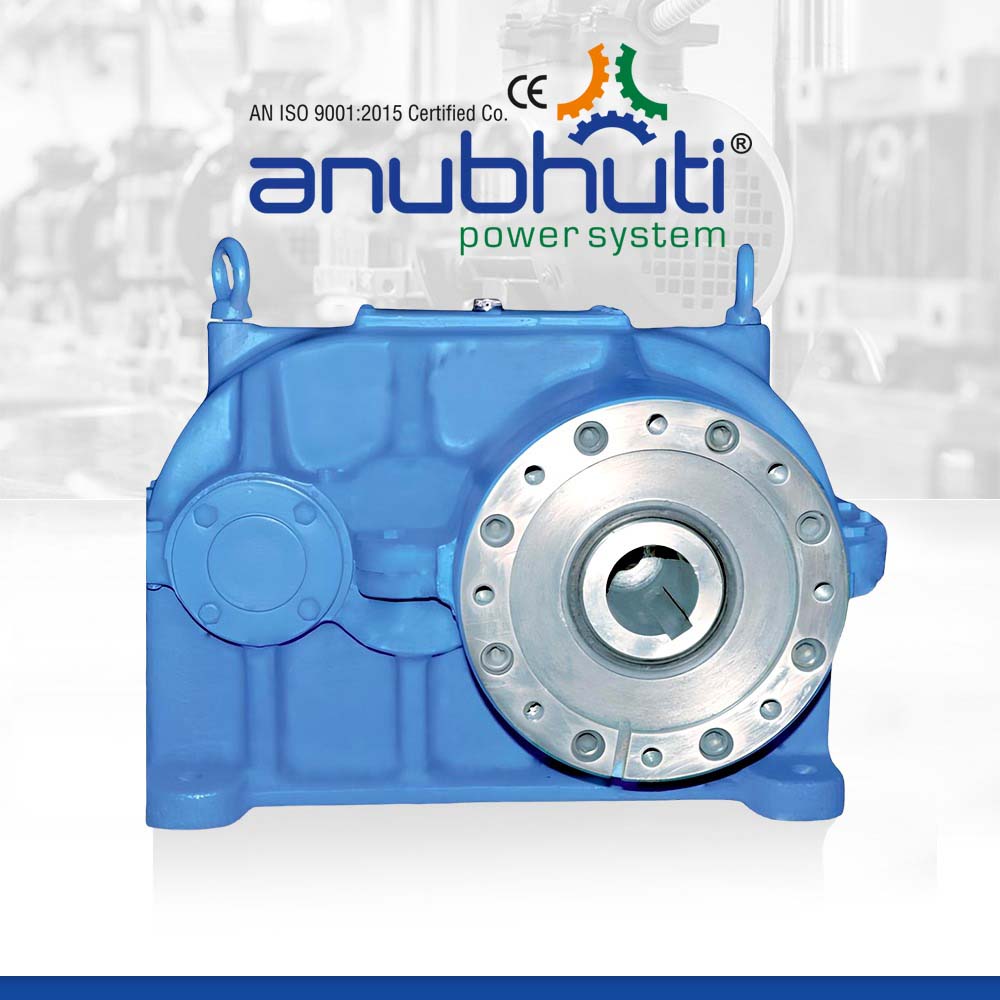

Extruder Gear Box

Extruder Gear Box - Durable and Efficient

An Extruder Gear Box is used in extrusion machinery in the plastic and rubber industries. It transfers power from a motor to the extruder screw which convert the motor's speed to drive the screw and help in the extrusion process. Extruder gearbox drives can deliver the high torque necessary for pressurizing and plasticizing molding materials. This series of gears can also withstand large axial thrust loads due to the built-in spherical roller thrust bearing. In this gearbox, the axial bearing housing component is specified to accommodate the appropriate thrust bearings and output shafts. We at Anubhuti Power System understand the value of these systems, which is why we have worked hard to produce this cutting-edge equipment. Our variety of extruder gearboxes is built for the extruder industry. We are one of the leading Extruder Gear Box Manufacturers in India, offering customized solutions to special demands.
Contact Us Now

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

EXTRUDER-GEAR-BOX-.2

Buy From the Leading Extruder Gear Box Brands

Extruder gear units are utilized in machinery found largely in two industries: rubber and polymers. As one of the most reliable Extruder Gear Box Suppliers in India, we have experience with the extrusion process and can adapt decades-old solutions to the most recent extruder gear unit. Our experience with extruder machines qualifies us to assist you, regardless of whether you operate in the rubber or plastics business. Our extruder gear boxes in double and single reduction parallel shaft horizontal types are built to be fully capable of carrying high torque and absorbing extreme axial thrust loads using spherical roller thrust bearings. Extruder gearboxes provide several features and advantages. After our experts have evaluated your machinery, you will be ready to resume using a high-quality extruder gearbox.
Explore More
Know More

Features Of Extruder Gear Box

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
  • Compact and rigid design
  • Helical/hardened and ground gears
  • Efficient heat dissipation system
  • High load-carrying capacity
  • Low noise and vibration operation
  • Durable bearings and oil seals
Call Any Time
(+91) 98256 76758
With Latest Technology

Applications Of Extruder Gear Box

1
Plastic extrusion machinery
2
Rubber processing machines
3
Cable and wire extrusion lines
4
Pipe and profile extrusion lines
5
Blow film extrusion machines
6
Sheet extrusion plants
7
Fiber and filament production systems
Detail

Technical Details

MODEL A B C D E F G H J K L M N P R S T U
EXT 110 190 140 430 215 170 — 230 80 350 150 180 125 310 25 115 220 8 14
EXT 125 215 155 475 225 200 — 260 95 395 170 200 140 340 25 135 220 8 14
EXT 140 240 175 530 240 215 — 270 130 440 190 220 160 380 30 200 275 8 14
EXT 160 270 192 590 270 225 — 305 135 500 230 270 180 405 35 200 285 10 18
EXT 180 305 215 665 275 270 135 370 135 565 230 270 200 475 35 200 315 10 20
EXT 200 340 245 750 300 285 145 415 145 630 260 310 225 520 40 245 352 10 23
EXT 225 385 260 825 340 300 125 470 165 705 270 320 250 570 45 245 352 10 23
EXT 250 430 290 925 373 350 135 525 180 790 310 375 280 625 50 275 380 10 27



MODEL V W X d1 L1 W1 H1 d2 d2(MAX) L2 W2 H2 AVERAGE NET
WEIGHT KG.		 APPROX. OIL
CAPACITY LITRES
EXT 110 M16 180 8 25 50 8 28.5 35 40 85 10 38.5 70 3.500
EXT 125 M16 180 8 30 70 8 33.0 35 40 85 10 38.5 90 5.000
EXT 140 M16 240 8 35 70 10 38.0 40 55 140 12 43.5 125 6.000
EXT 160 M16 250 8 35 70 10 38.0 50 65 170 14 54.0 165 8.000
EXT 180 M20 265 8 50 100 14 53.5 55 70 170 16 59.5 240 10.500
EXT 200 M20 300 10 55 100 16 59.0 65 80 170 20 70.0 300 14.000
EXT 225 M20 300 10 60 100 18 64.0 65 85 240 20 70.0 400 17.000
EXT 250 M20 330 10 65 110 18 69.0 70 90 240 20 75.0 535 24.000

Extruder Gear Box Power Rating (kw)

Power Rating kw
Ratio Input
Speed		 Output
Speed		 Ext
110		 Ext
125		 Ext
140		 Ext
160		 Ext
180		 Ext
200		 Ext
225		 Ext
250
6.3:1 1500 238 32 45 63 94 130 184 256 333
1000 158 21 30 42 63 90 130 193 252
10:1 1500 104 22 32 48 72 100 150 200 255
1000 69 15 21 32 46 65 95 135 170
12.5:1 1500 120 18 26 36 49 72 99 153 202
1000 80 12 17 24 33 46 69 103 148
14:1 1500 104 16 23 31 43 61 90 135 184
1000 69 10 15 21 28 41 63 94 130
