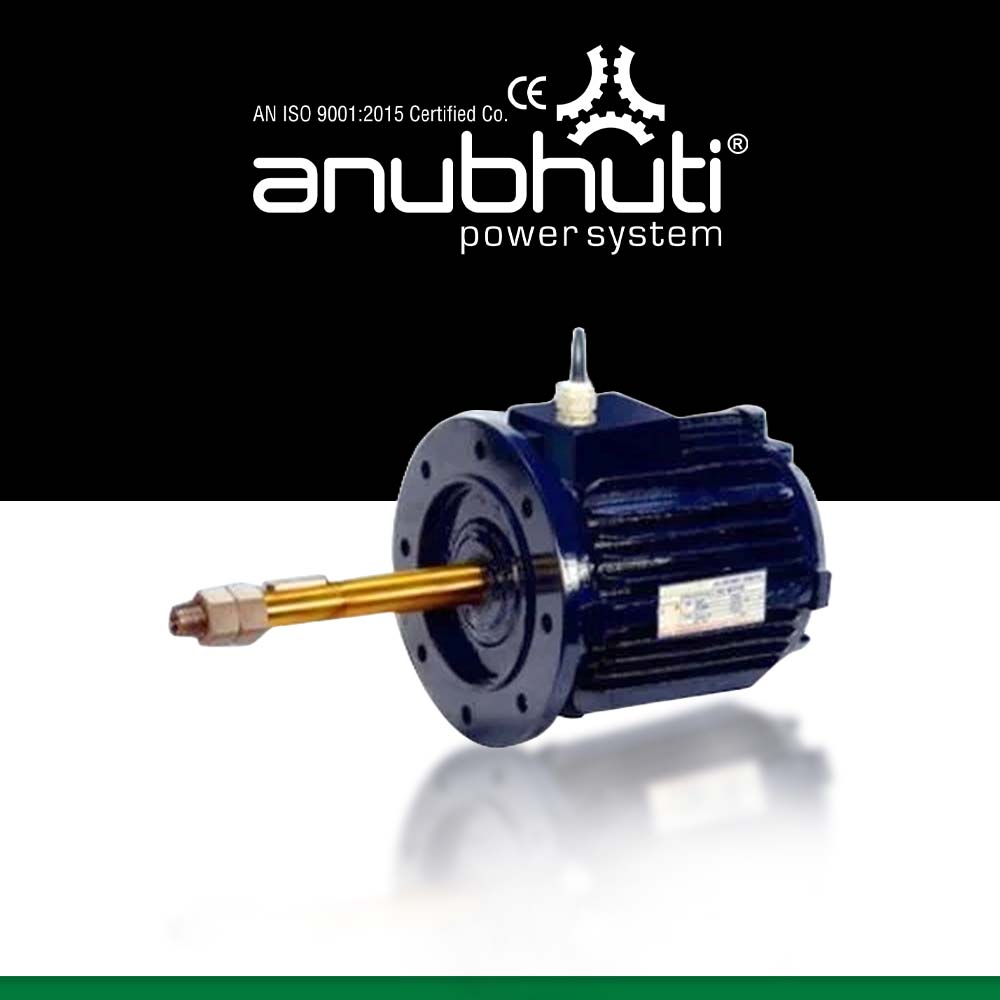

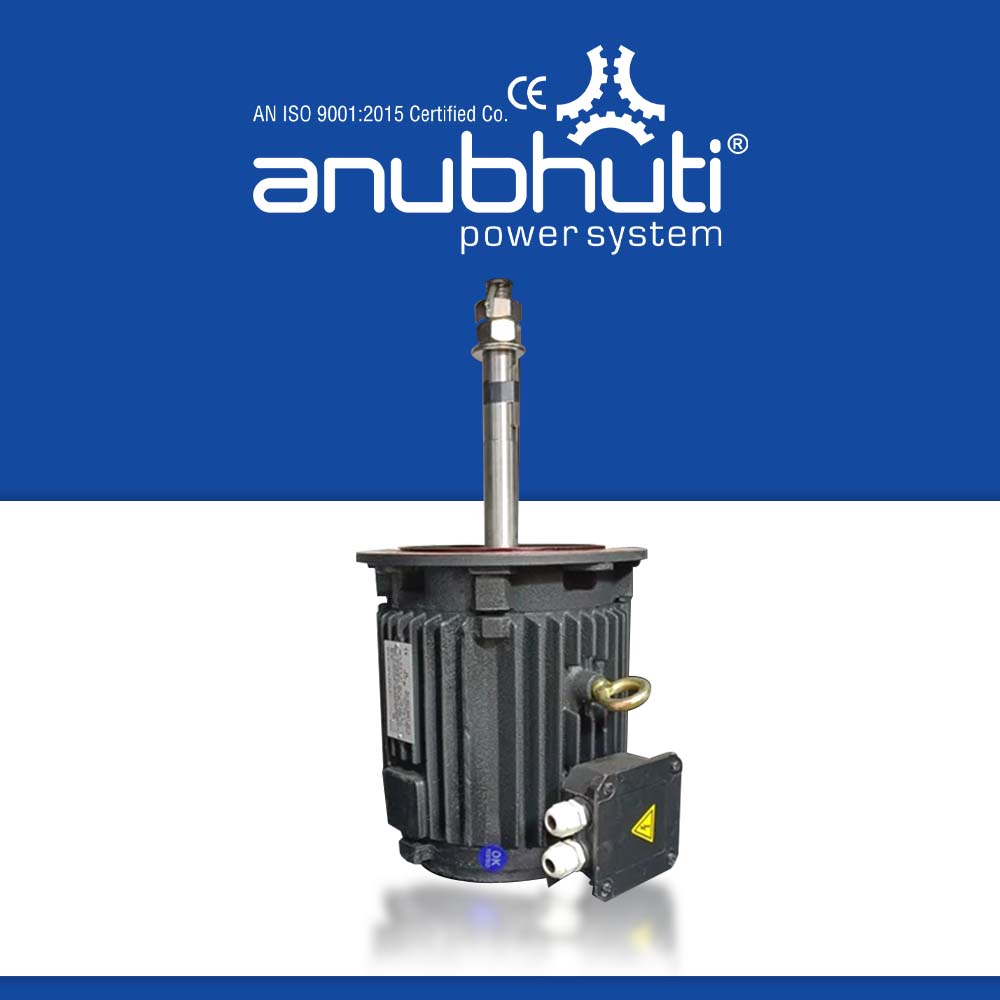

Three Phase Cooling Tower Motor

Get The Best Three phase Cooling Tower Motor

Cooling tower motors are a unique type of motor that requires precise construction and design to function efficiently. If you're seeking the best Three Phase cooling tower motor manufacturers in India, look no other than Anubhuti Power System. Our cooling tower motors are engineered to work well in a cooling tower’s hot, humid climate. These motors are normally offered in both single- and two-speed versions. Cooling tower motors may handle a variety of installation dimensions due to their different casing options. Cooling towers are specialized heat exchangers that transfer heat from water mostly through latent heat loss due to evaporation when in contact with an airstream. Aside from evaporative cooling, water is cooled through sensible heat transfer due to the temperature difference between air and water.
Contact Us Now

All Motors As Per IS:325 For Electrical IS-1231 For Mechanical Dimension.Flange Mounting are Motor IS-2223 For Flange Mounting Dimension. Face Mounting ARO Motor IS- Per 325 & 2223.

cooling-tower-motor-1

Reliable Three Phase Cooling Tower Motor Suppliers in India

Because of our extensive experience and high-quality offerings, we are the reliable manufacturer and suppliers of Three Phase Cooling Tower Motor. By leveraging specialist sector knowledge, a client-centric work mechanism, and using modern accessories, we provide users with the desired results. Additionally, we manufacture a wide range of cooling tower motors that are suitable for several applications. Our motors are composed of high-quality materials, making them long-lasting and worth the investment. Regardless of the type of cooling tower motor you require, we provide a wide range of specs and features to satisfy your needs. So, its worth choosing us as your cooling tower motor dealer, and we guarantee the best products.
Explore More
Know More

Features of Three-Phase Cooling Tower Motor

These are the fundamental characteristics of this product that contribute to its sustainability and longevity. We provide you with the very best!
  • Highly efficiency
  • Small mounting support
  • Three-phase induction motor finish
  • Fan-cooling design
  • High-efficiency working support
  • Energy saving performance
Call Any Time
(+91) 98256 76758
With Latest Technology

Applications of Three-Phase Cooling Tower Motor

1
Cooling Tower
2
Thermal power station
3
Textile Industry
4
Plastic Industry
Detail

Technical Details

01
Mounting
Foot – Flange – Face
02
Power
10-100 Kw
03
Speed
2000-6000 RPM
01
Range
0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
07
Enclosures
Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55.
03
Standards
Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
04
Frame
Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
05
Ratings
All Standard Three-phase Motors are continuous rated to comply with performance standards.
06
Voltage & Frequency
Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Details

Product Details

Frame
63-160 L
K.W.
0.18 -15 Kw
H.P.
0.25-20 Hp
R.P.M
2900, 1500, 1000, 750 rpm
I Class
B. & F.
Duty
S1, S2, S3, S4
Enclosure
TEFC, TESC
Protection
IP 44, IP 55, IP 54
